In today’s quick manufacturing world, the demand for precisely made parts is more important than ever. Things are moving fast. Custom aluminum extrusions are now fundamental in many different fields. You can see them in cars, planes, electronics, and buildings. Their flexibility is key. They can be made to fit precise requirements, which makes them extremely useful for ensuring strength, good looks, and practical performance.
There are many benefits to using custom aluminum profiles. So, what is an industrial aluminum profile? It’s an alloy material, mostly made of aluminum, and it’s created using a hot extrusion process. This process makes intricate shapes. These shapes are light but also durable. What’s more, they resist rust and are easy to work with. Because of this adaptability, they can satisfy particular engineering and design needs.
Overview of the Aluminum Extrusion Process
Understanding the extrusion process is essential to appreciating the value of custom aluminum extrusions.
- Raw Material Selection and Alloy Composition
First of all, the process starts with choosing the right alloy. Popular alloys include the 6000 series, like 6061 and 6063. Other series such as 3030, 4040, 4545, and 5050 are also used. Why these? They are valued for their great strength-to-weight ratio and resistance to rust. They also offer a good variety of mechanical properties and choices for the surface finish. - Billet Preparation and Preheating Techniques
Next, billets are cut from cast logs. They are then preheated to around 400–500°C. This step makes the metal softer. It’s soft enough for extrusion, but its molecular structure isn’t damaged. Correct preheating is important. It guarantees a smooth movement through the die. Thus, it lessens damage to the tools. - Die Design and Tooling Considerations
The design of the die is very important. It’s how we get the exact cross-sectional shapes we need.
- Types of Extrusion Dies:There are a few kinds. Solid dies make profiles with no empty spaces inside. Hollow dies are for things like tubes or channels, and semi-hollow dies produce shapes that are partly enclosed. The selection is based on what the part will be used for, like airflow, wiring channels, or structural support.
- Precision Tooling Components:Modern CNC machining improves the die’s precision. With precision tooling, we can make sure tolerances are kept during big production runs. This also helps cut down on waste and makes the final product more uniform.
- Extrusion Press Operation and Profile Formation
After the preheated billets are put in the press, a powerful hydraulic ram pushes them through the die’s opening. The new profile comes out. Its cross-section is unchanged. Now, it’s prepared for the next steps.
Post-Extrusion Processing Techniques
After the extrusion is done, there are a few more steps. These steps make sure of the correct measurements and physical strength of the profile.
- Cooling and Stretching for Structural Integrity
The newly made profile is cooled down quickly. This is done with either air or water quenching systems. Then, it gets stretched. This fixes any curves that might happen from inconsistent cooling or changes in pressure as it leaves the die. - Cutting to Length with High-Precision Tolerances
The profiles are then cut to particular lengths. We use automated saws for this. These saws can keep very strict tolerances, often within ±0.5mm or even better. It all depends on what the customer needs. - Heat Treatment Options (T3–T8 Tempers)
Heat treatment makes the aluminum stronger. It does this by changing the material’s microstructure with carefully managed heating cycles. Well-known tempers such as T5 and T6 increase the material’s yield strength and hardness. This makes the extrusions good for structures that need to hold a lot of weight. In these cases, strength is very important. - Surface Finishing and Protection Methods

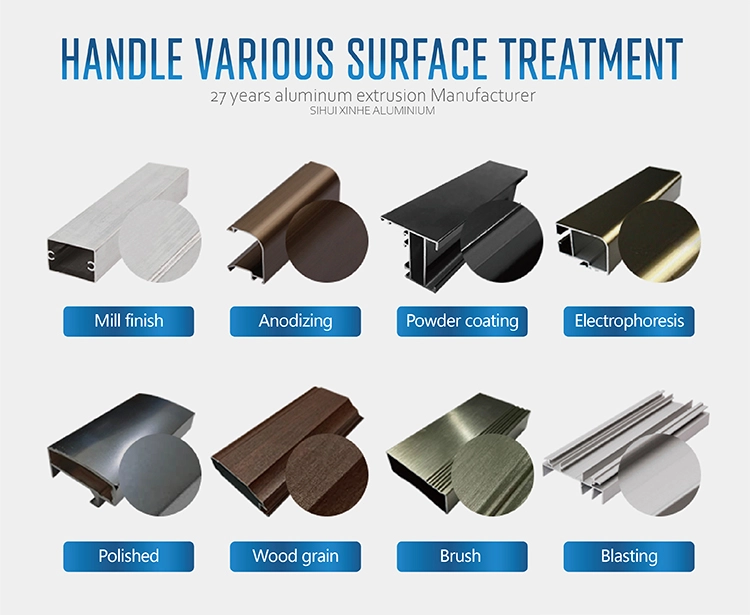

Finishing the surface does two things. First, it makes the product look better. But it also lengthens its life by protecting it from the environment.
- Anodizing:This process makes the natural oxide layer on the aluminum’s surface thicker. So, it gives great protection against rust. What’s more, it makes color personalization possible. Common colors we have in stock are anodized silver and black.
- Powder Coating:This adds another layer of protection. It comes with a wide range of bright color choices. White and black are very popular options.

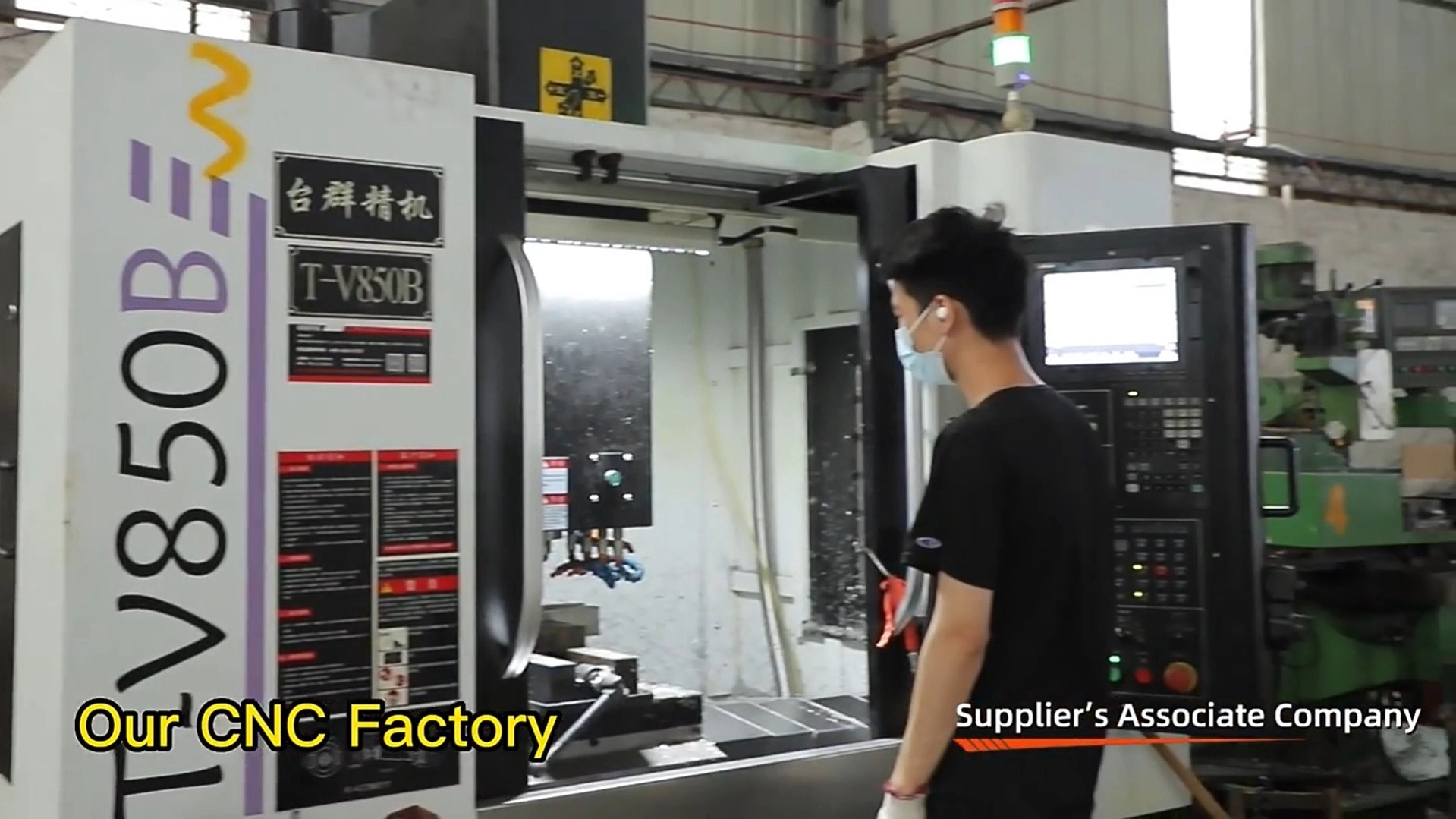

CNC Machining Capabilities for Customization
Modern CNC technology makes it possible to add complex details after the extrusion process.
Our secondary machining services—including milling slots, drilling holes, punching features, and tapping threads—are performed with high precision. For most jobs, we can get very strict tolerances, usually between ±0.05mm and ±0.1mm. This is thought of as highly precise for aluminum profiles. But some jobs need amazing accuracy. For those, we have ultra-high precision machining. It can get tolerances as small as ±0.002mm. This kind of precision work guarantees that parts will fit perfectly into assemblies. There is no need for extra changes during installation.
Because of our CNC abilities, designers can build things like mounting flanges, cable channels, or pretty details right into the extrusion designs. This cuts down on assembly time. It also makes the final product work better.
Angle Bracket Customization Techniques
Angle brackets are very important in mechanical assemblies. They safely join profiles together at set angles. The brackets spread weight out evenly across the joints in frames. This is necessary for things like automation equipment or modular furniture. We can use custom aluminum extrusions to make these brackets. This makes it possible to create custom-fit brackets that go with the system’s look perfectly. You don’t have to worry about problems with standard parts not fitting. Plus, brackets can be made thicker in areas that take a lot of stress. They can also be strengthened with gussets. This is to make sure they can handle changing loads without bending or breaking.

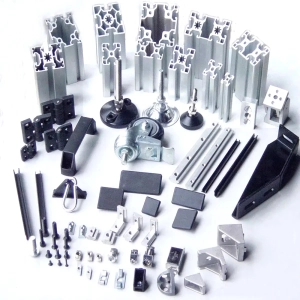

Modular Assembly with T-Slot Aluminum Profiles
T-slot systems have totally changed design flexibility in many industries.
T-slot profiles are frequently seen in assembly lines. They usually have square or rectangular cross-sections. Their main feature is a symmetrical design. They have T-shaped slots on all four sides and a hollow center. These slots are great. They let fasteners move in smoothly. So, you can create adjustable connection spots anywhere on the profile.
This modular style has many advantages. It means shorter waiting times when you’re making a model. It also makes future changes or updates to assembly lines much easier. You can assemble parts with bolts, not welding. This is a big plus. It lowers labor costs. It also lets you take the structure apart later without damaging the pieces. Because you can reuse the parts, T-slot systems are perfect for production environments that are always changing.
Packaging, Delivery, and Supply Capabilities
Good logistics are very important. This is especially true when buying custom aluminum extrusions from around the world. We use safe packaging to keep the profiles from getting scratched. For example, we use inner film wrapping and outer shrink bundling. This protects them during both local and international shipping. For shipping, we offer container freight options. These include 40HQ (19-21 tons) or 20GP (9-10 tons).
Our lead times are quick. In-stock items can be prepared for shipment within 3-5 days of ordering. Custom orders take a bit longer. A full container usually takes about 25-30 days. What if you need a new mold? That will require an extra 7-15 days for us to make the tool. Our factory can produce up to 2000 tons every month. So, we can manage big orders well without lowering the quality.
Customization Options for Branding and Application Fit
Besides just dimensions and finishes, we offer other ways to customize. We can help with your branding and make your product unique. This includes things like engraving a logo, marking a graphic, or creating custom packaging. These services make the brand more seen and improve how customers feel. This is very important for our OEM clients.
For some custom features, we do have Minimum Order Quantities (MOQ). This is to make sure we are keeping costs down for everyone.
Anodized finishes: 500kg
Powder coating and wood grain finishes: 2 tons
Introducing XiHui Aluminium as a Manufacturer
XiHui Aluminium is a company that does everything. We focus on custom aluminum extrusions. These are made exactly to what our customers want. We handle the whole process, from start to finish, all in one place.
We have 33 years of experience in making and selling these products. Because of this, XiHui Aluminium has a huge collection of tens of thousands of already-made extrusion molds. This lets us give our customers a variety no one can beat. It’s all backed by a lot of experience in the field. We have technical knowledge in many areas all over the world. We focus on top-quality 6000 series alloys, such as 6061 and 6063. This guarantees the best strength-to-weight ratios. Besides, these materials are also easy to work with.
Our processing abilities include precision cutting, welding, and CNC machining. We do it all ourselves, under a close watch. Our promise to quality control is strong. Every step in the process is watched carefully. We use specially adjusted tools and follow ISO rules. This makes sure that everything we make is the same, no matter how hard the job is. What’s more, it guarantees our customers are happy with every single order.
FAQs
Q1: What industries benefit most from custom aluminum extrusions?
A: Many fields get a lot of advantages from custom aluminum extrusions. These include aerospace, automotive, electronics, and automation equipment manufacturing. Why is that? The benefits come from the material’s perfect mix of being light yet strong. It also resists rust and is easy to make things with. This is especially true for alloys like 6061 and 6063.
Q2: How does XiHui ensure precision during mass production?
A: We make sure things are exact by using a mix of modern CNC machining centers and strict quality control checks. These checks happen during the whole process. Doing this makes sure everything is the same, even when we are making a large amount of product. Our factory’s capacity gets up to 2000 tons a month. And it’s all handled well to meet our high-quality standards.
Q3: Can I request a new mold design based on my drawings?
A: Of course. XiHui has complete mold development services. We work using the CAD files that customers give to us. This lets us make special cross-sectional shapes. They are made exactly for your particular use. In short, we can make molds from customer drawings.
